Panel inverters are used in a wide range of heat transfer applications, such as refrigeration, heating, industrial heating and cooling.

In the actual welding process, a welding point is formed at each contact point between the corrugated plates. The plate type frequency converter contains 2 independent flow channels. The heat exchange medium is introduced into the plate group through the holes formed by the four corners of the flow channel plate and is distributed to the flow channels formed between the corrugated flow channel plates for heat exchange.

Plate material has 304 or 316L two options

Copper BPHE Max Design Pressure: 30 bar / 45 bar
Nickle BPHE Max Design Pressure: 20 bar

Plate heat exchangers are used in a wide range of heat transfer applications, such as refrigeration, heating, industrial heating and cooling.

The plate heat exchanger is a high-efficiency heat exchanger made by stacking multiple metal sheets with a certain corrugated shape. A thin rectangular channel is formed between various plates, and the plates are exchanged. Ideal equipment for liquid-liquid and liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, low heat loss, compact and lightweight structure, small location, wide application, long replacement and so on. Under the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, and the part is the distribution of the tube heat exchanger, and the heat recovery rate can be as high as 90% or more.

The disassembly of the plate heat exchanger is composed of many stamped corrugated thin plates at a certain interval, sealed with gaskets around them, and stacked and compressed with a frame and a compression screw. The four corner holes of the plates and gaskets form fluid distribution pipes and The collecting pipe, while reasonably separating the cold and hot fluids, is set to flow in a pair of flow channels for each plate, and heat exchange through the plates

Our Solar Pool Exchanger Line of heat exchangers are designed to perform at high secondary side fluid velocities with low pressure drops.

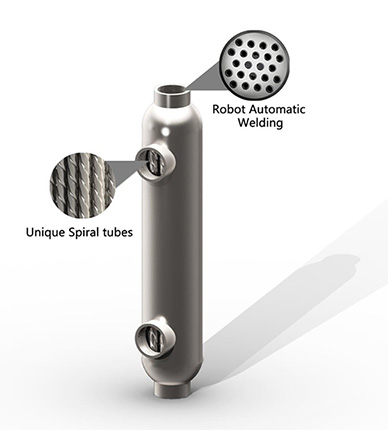

The have a helical coiled tube design that makes it distinctive from other shell and tube heat exchangers on the market today. This unique design enables efficient heat transfer performance, and allows for diversity in its applications.
To maximize the performance of the Solar Pool exchanger, the product should be installed in a counter-current flow method, as shown below in Figure below. The hot, or heating, fluid flows through the tube or primary side. The cold, or heated, fluid flows through the shell or secondary side.

Example: for swimming pool applications, the pool water is to flow through the shell side, and the boiler water is to flow through the tube side.

1.100% pure titanium,strong anti-corrosive
2. Spiral twisted construction increases surface area
3. PVC shell is strong and highly durable ,and naturally resistant chlorine
4. One heat exchanger tube promised the risk of inner titanium tube's leaking
5. High efficiency,low cost,long lifetime
6. Can be used as condenser or evaporator upon request

Shell Dimension: 110mm/160mm/200mm
Name: Titanium Water Evaporator
Usage: Cooling
Inner Tube Material: Pure Titanium twisted tube
Barrel Material: PVC (Polyvinyl Chlorine)
Refrigerant Side Pressure: 4.5 Mpa (700psi)
Water Side Pressure: 0.8Mpa (100psi)
Capacity: 2.5kw-60 kw or more
