Pool Heat Exchangers
Because of the added chlorine and bromine found in pools and spas and the flow requirements at the pool/hot tub side, flat plate solar heat exchangers are not suitable. A Special high flow pool heat exchanger should be used instead. These heat exchangers can handle the higher secondary side flow as well as the high levels of chlorine and also have better flow characteristics making them ideal for solar pool heating or solar hot tub heating. For applications that use salt water, we recommend the Titanium version of the pool heat exchanger. This version is highly resistant to salt water and chlorine.

Our Pool Exchanger Line of heat exchangers are designed to perform at high secondary side fluid velocities with low pressure drops.

They have a helical coiled tube design that makes it distinctive from other shell and tube heat exchangers on the market today. This unique design enables efficient heat transfer performance, and allows for diversity in its applications.

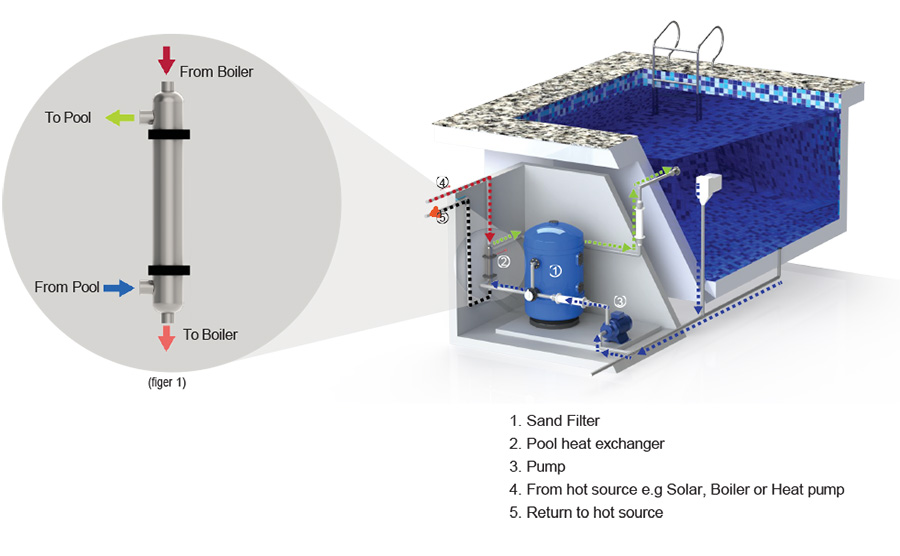

To maximize the performance of the Pool exchanger, the product should be installed in a counter-cur- rent flow method. The hot, or heating, fluid flows through the tube or primary side. The cold, or heated, fluid flows through the shell or secondary side. (Figure 1)

Features:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any solar heating or boiler circuit and any pool or spa circuit, besides other applications.

Advantages:
•    High efficiency, coefficient up to 14000 w/m2 deg C, Heat exchanging capacity 3-7 times traditional equipment’s
•    Compact configuration, occupy small area, one tenth as the traditional equipment
•    Stainless steel and/or Titanium, material, endure high temperature, pressure and corrosion
•    Helix screw thread elasticity heat exchange bundle, eliminate the stress
•    Design flux speed is 5.5m/s, less dirt
•    Big flow volume
•    Compactable
•    Easy installation and durable

Flow instruction

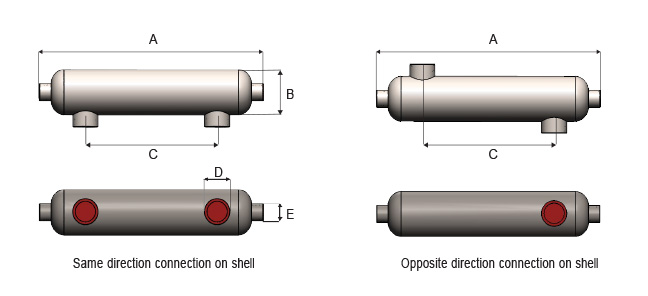

Specifications and Dimensions

Material: Stainless / Titanium
Max design pressure: 10 bar or 30 bar ( 145 Psi or 440 Psi) Max temperature: 300 °C ( 572 °F)
