Baode FPH Ti Heat Exchanger

Corrosion resistant heat exchangers for swimming pool heaters, aquariums, aquaculture, waste heat recovery, water source geothermal heat exchange, and other non-potable water heating or heat transfer use with PVC compati- ble working fluids.

All models use 6mm thick PVC shell with TA1 pure titanium seamless tube. Compatible with all CFC, HCFC, and HFC refrigerants.
Designed for use with highly chlorinated water and salt water.



Water side temp. range

32 - 113F

Water side max. pressure

72 PSI

Refrigerant side temp. range

-58 - 248F

Refrigerant side max pressure

740 PSI



Model

Capcity
(KW)

Water Flow Rate
(m³/h)

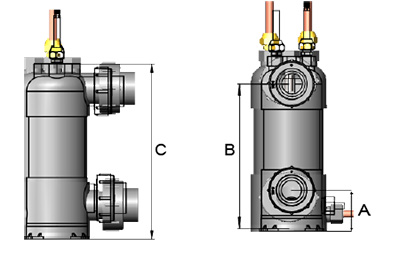

A
(mm)

B
(mm)

C
(mm)

PVC Shell
(mm)

Tube Size
(mm)

Tube
Length (m)

Gas Connection (mm)

Water Connection

PVX-38

3.8

1.8

70

170

380

φ110*330

12.7

3

φ12.7/φ12.7

ϕ50 PVC thread

PVX-45

5

2

70

235

445

φ110*405

12.7

4.9

φ12.7/φ12.7

PVX-95

9.5

4.2

70

285

495

φ110*495

12.7

6.5

φ12.7/φ12.7

PVX-120

12

5.5

70

350

560

φ160*470

12.7

8.4

φ12.7/φ12.7

PVX-140

14

6.2

80

375

595

φ160*510

12.7

10.5

φ12.7/φ12.7

PVX-170

17

7.5

80

360

585

φ200*520

16

9.8

φ12.7/φ12.7

PVX-210

21

9.2

80

370

595

φ200*530

19

10

φ12.7/φ19

PVX-250

25

12

80

400

625

φ200*560

19

12.5

φ12.7/φ19

PVX-300

30

14

80

430

650

φ200*590

19

15

φ12.7/φ19

PVX-360

36

15

80

450

660

φ200*610

19

17

φ12.7/φ19
