Plate & Shell Heat Exchanger (PSHE)

The PSHE range of heat exchangers are new generation heat exchangers, combining the best properties of the Plate & Frame and Shell & Tube heat exchangers. The PSHE provides high heat transfer rates with a high pressure and temperature operating range. They have no gaskets, are compact, low fouling and can operate at close approach temperatures.

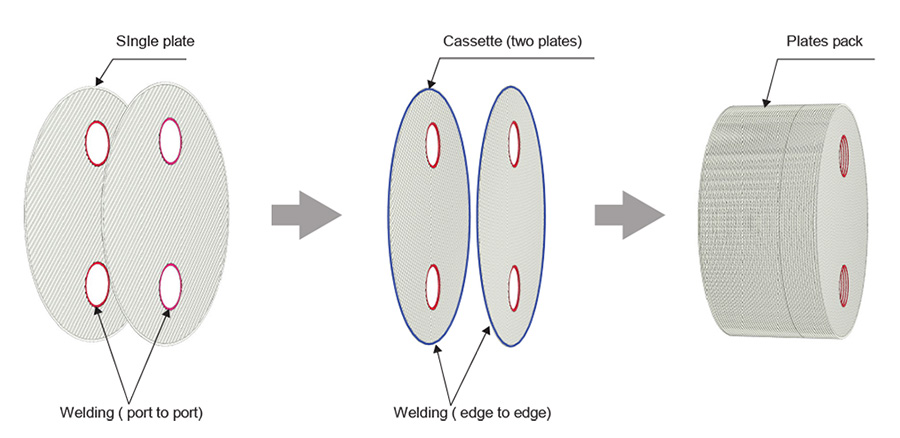

At the heart of the PSHE is a fully welded pack of circular plates without gaskets. This plate pack is housed within a tubular shell to provide a strong compact construction. The PSHE series have a very wide operating range with capacities of up to 100 MW / units, and can operate at pressures up to 100 bar and temperatures up to 400°C. They have a low maintenance design that provides flexibility to select different material and nozzle combinations.

Applications:
–    Steam condensers and generators
–    Condensate heaters and coolers
–    Exhaust gas recovery
–    LNG applications
–    Crude oil heaters and coolers
–    Gas heaters and coolers
–    Hydrocarbon condensers and evaporators
–    Product heaters and coolers
–    Gas heaters and coolers
–    Heat-recovery exchangers like feed/effluent exchangers
–    Overhead condensers and gas liquefiers
–    Thermosyphon and kettle reboilers
–    Reactor temperature-control heat exchangers
–    Cryogenic applications
–    Evaporators
–    Droplet separators
–    Evaporators/droplet separators (Combined)
–    Cascades
–    Desuperheaters
–    Oil coolers
–    Subcoolers
–    Condensers

Benefits:
•    No Gaskets or Brazing
•    High Integrity / Total Containment
•    Strong and Safe Construction
•    Protection and Resistance to Thermal and Pressure Cycling
•    Thermally Efficient
•    Compact and Low Weight
•    Flexible Construction
•    Proven, Reliable Technology
•    Low Fouling
•    Minimal Maintenance Requirement
•    Close Approach Temperatures

Technical Specification
Maximum Heat Transfer Area • 2 000 m²/exchanger Mechanical Design
•    Full vacuum to 70 bar possible
•    -164 to +500°C

BAODE heat exchanger

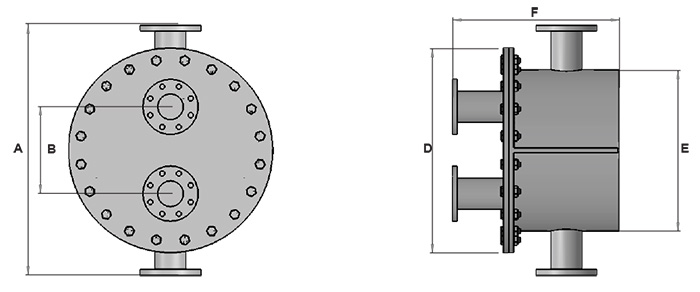

Schematic of the PSHE

BAODE heat exchanger

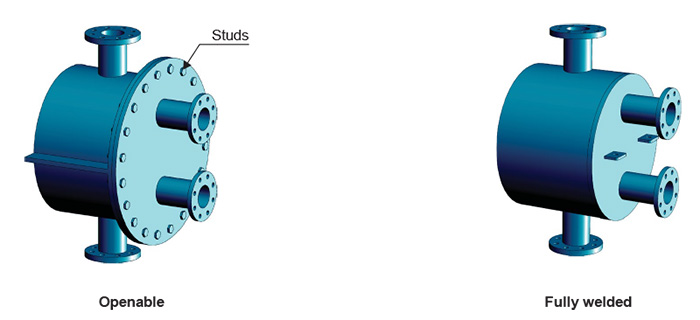

Type of PSHE

BAODE heat exchanger

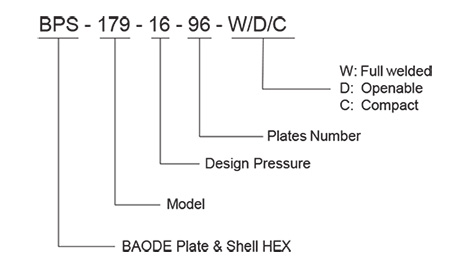

Mode name code

BAODE heat exchanger

BAODE heat exchanger

Model

A

B

C

D

E

F

G

BPS16

240

98

250

168

2.4*N+2

DN15

DN15-DN80

BPS22

448

135

310

219

2.4*N+3

DN20

DN20-DN100

BPS46

469

174

368

269

2.4*N+4

DN40

DN25-DN200

BPS72

565

277

460

355

2.8*N+4

DN50

DN25-DN300

BPS128

600

298

694

464

2.8*N+6

DN80

DN25-DN350

BPS179

963

338

725

559

2.8*N+6

DN100

DN25-DN400

BPS647

1520

650

1250

1016

3.2*N+6

DN150

DN25-DN700

BPS1200

1828

900

1548

1372

3.2*N+8

DN300

DN25-DN1000

BPS1600

2098

1000

1838

1562

3.2*N+8

DN350

DN25-DN1200


Material:



Shell









Plate





Carbon steel









AISI304





AISI 304









AISI 316L





AISI 904L









AISI 904L





AISI 904L









254 SMO





254 SMO









TI





Ti









Nickle





Hastelloy









Hastelloy 254





Others









others
